Spacers, Shims and Hardware Packs
Spacers, Shims and Hardware Packs
Hardware
Bolt lengths vary depending on model. Use the provided 5/32" short arm hex key to install. In some cases, certain combinations of footpads and bumpers require an additional 1/16-1/8 of threading. Contact us for guidance as needed.
For both OG and Owl models, the provided bolt lengths are as follows. Washers are included. Owl Hybrid orders come with the hardware necessary to install on either XR or GT and a set of spacers for use on a GT with FM Stock Bumpers.
- XR - FM Stock Bumpers: 10-32 7/8"
- XR - TFL BANG Bumpers: 10-32 1-1/8"
- GT/GTS - FM Stock Bumpers: 10-32 1-3/8"
- GT/GTS - TFL BANG Bumpers: 10-32 1-3/8"
- GT/GTS - LS Bash Bumpers: 10-32 1-3/8"
- Pint - FM Stock Bumpers: M4 x 16-18mm
Spacers
Made of PETG, these spacers must be installed with OverLander Lifters for a solid mount to the following bumpers:

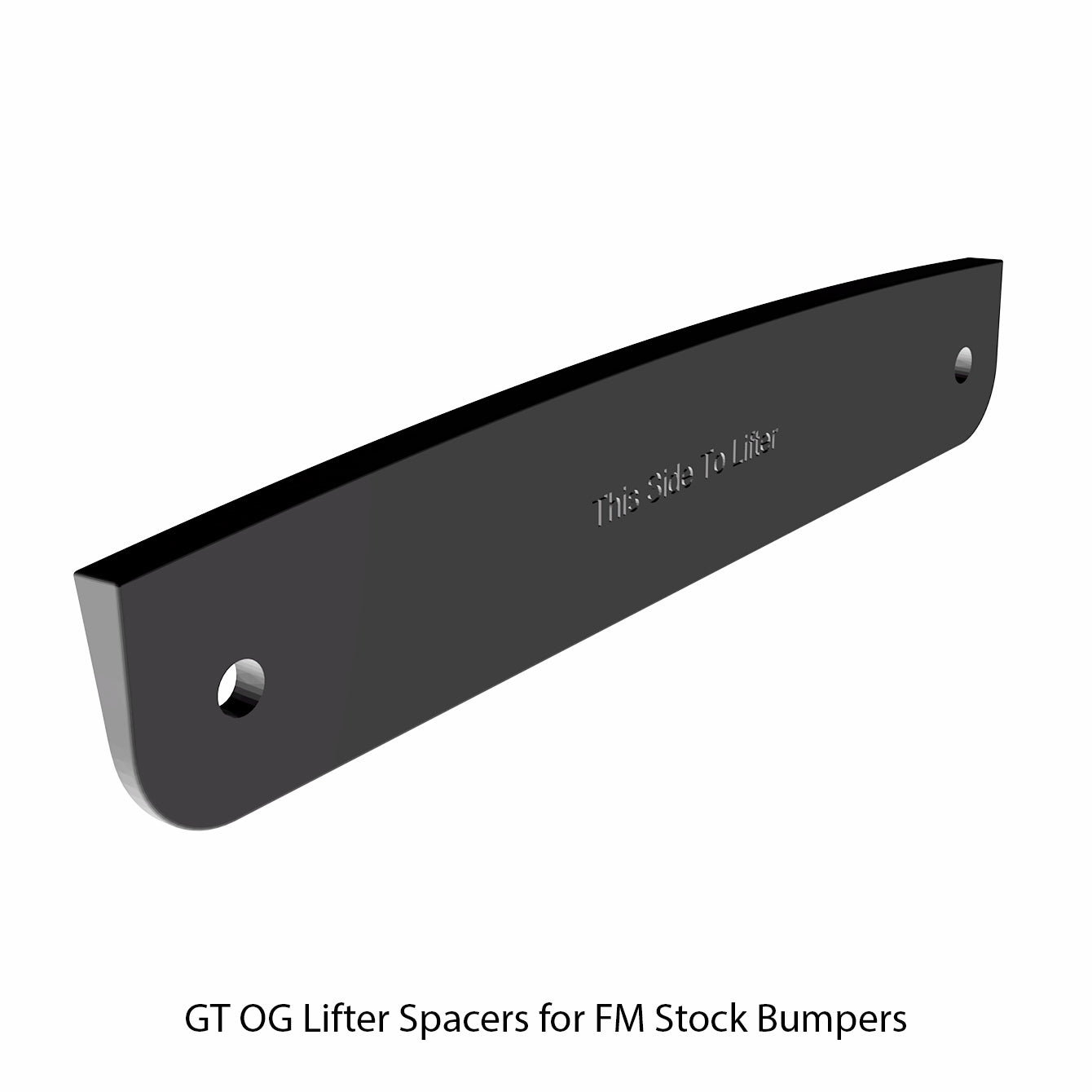

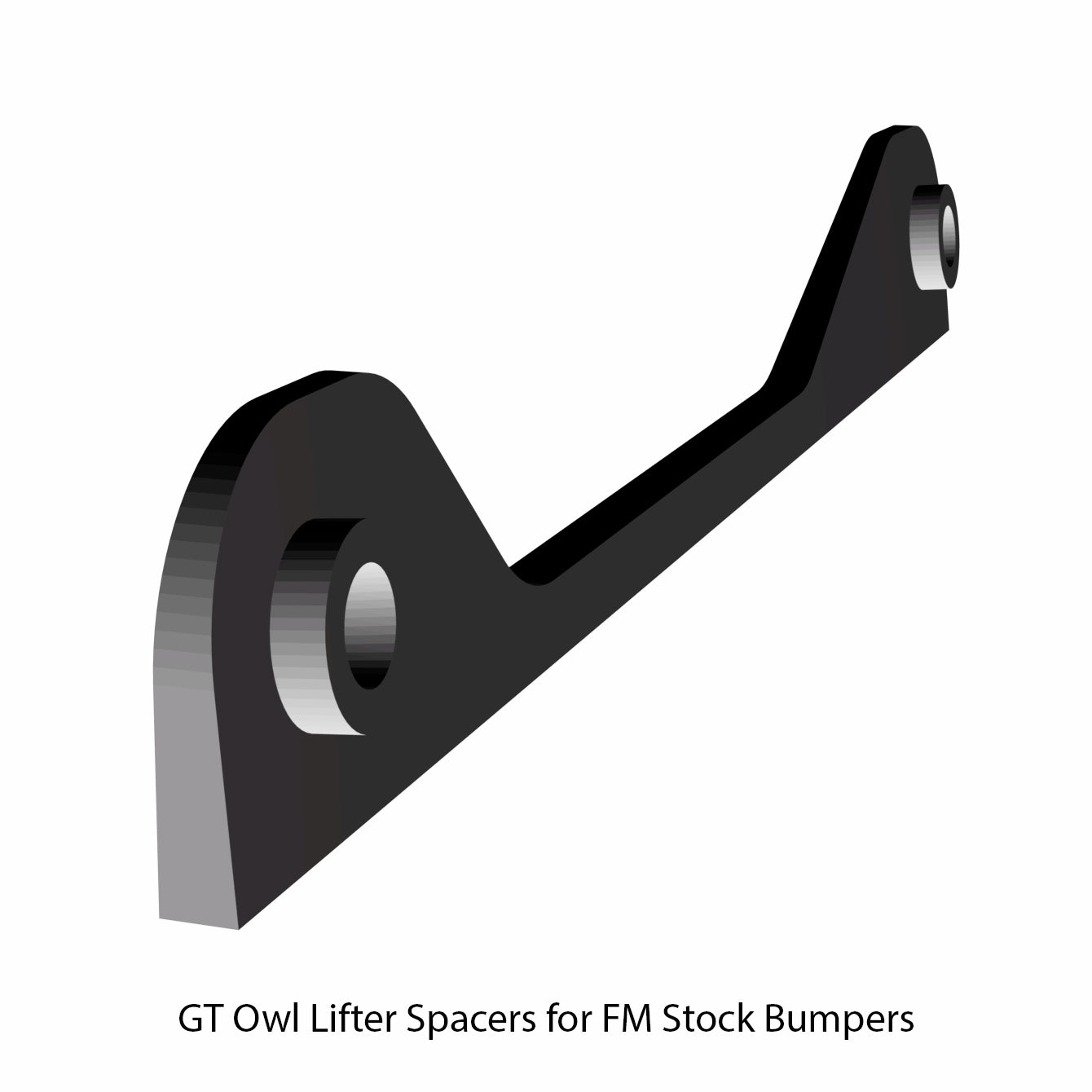

- Future Motion Stock Bumpers for GT (corresponding count included in all orders for GT Lifters)
- The Float Life BANG Bumpers for XR (3D Print Files)

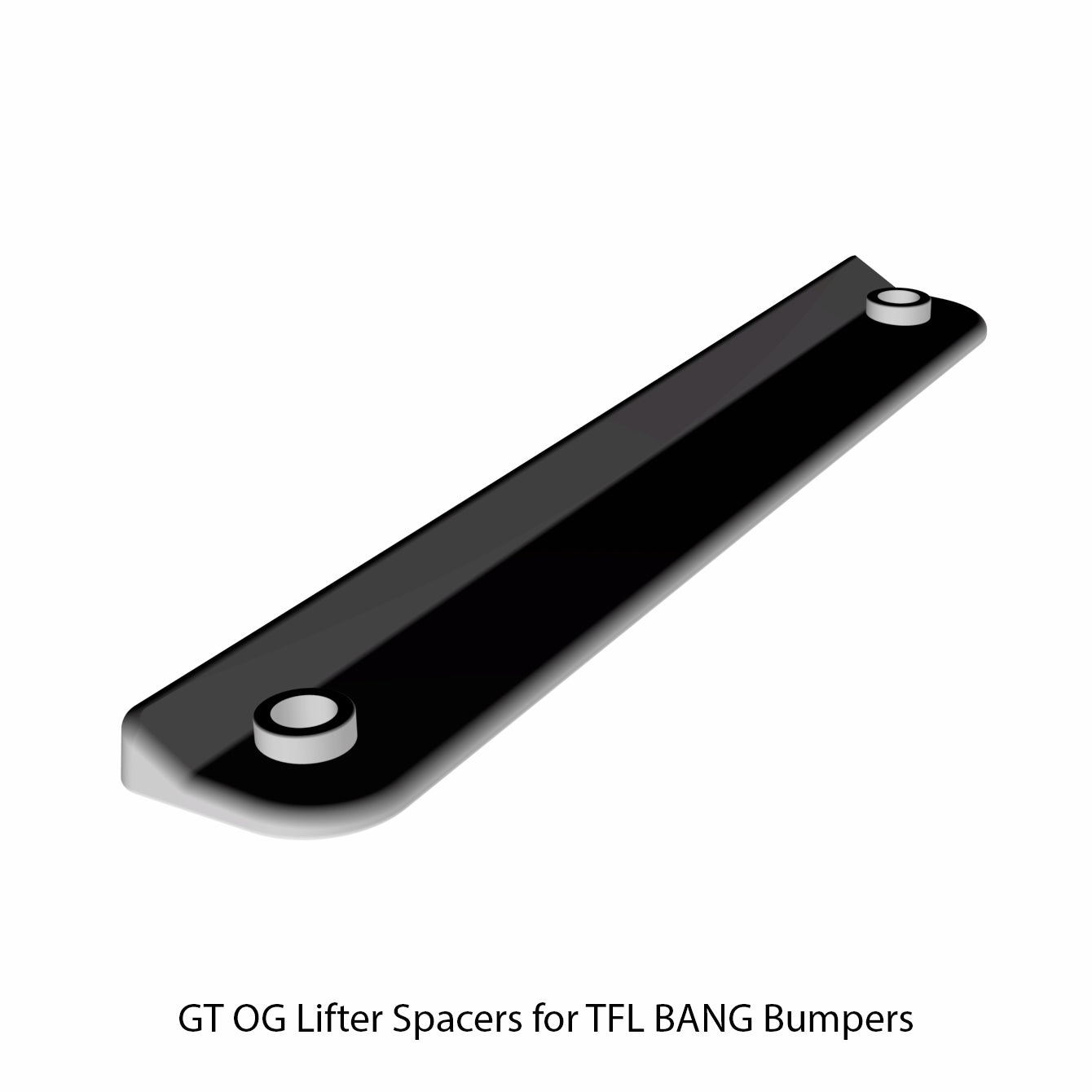

- The Float Life BANG Bumpers for GT (3D Print Files)

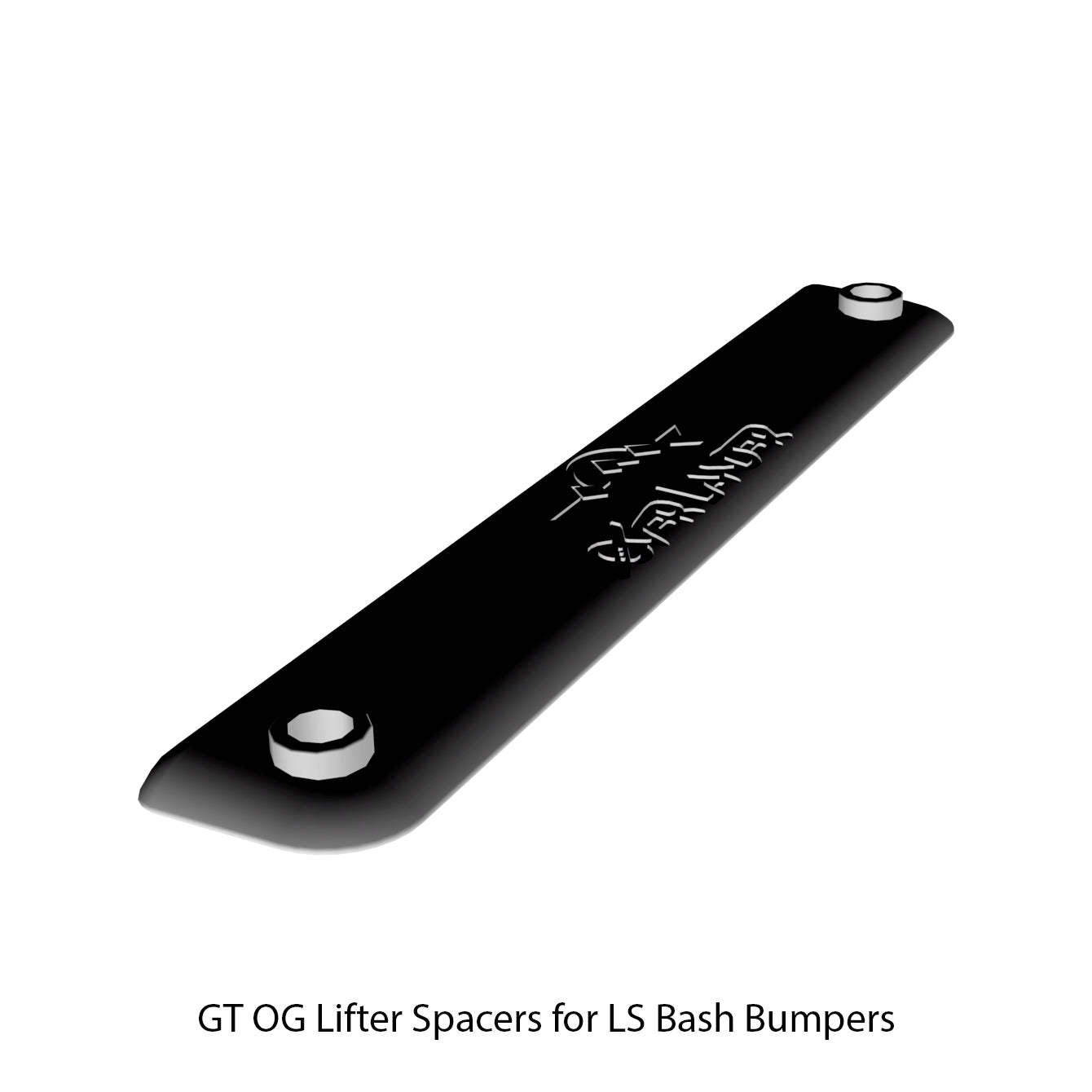

- LandSurf Bash Bumpers for GT (3D Print Files)
Lifter Pad Shims
Shims are available to help close any gap between the Lifter pad and the top of the shoe. If a height different than those offered is desired, please contact Koltyn directly. These are available in 4mm, 8mm, and 12mm. Corresponding bolt length is 6mm + the thickness of the spacer (i.e. M4 x 10mm, M4 x 14mm, M4 x 16mm), all of which can be found at your local hardware store for replacement bolts).
Grip Tape
OG Lifter orders come with a strip of grip tape per Lifter, to be applied to the vertical wall where the sole of your shoe would abut the metal. This is should be the last component to be installed.
